Port organization

When travelling from their production site to their final destination, chemicals transit through ports where they are stored, packaged and loaded onto vessels.

Ports are divided into several distinct terminals, each specifically dedicated to the handling and storage of a particular type of cargo. The size and specialization of the port determine the presence and extent of these different terminals.

Liquefied gas terminals

Transporting a chemical in gaseous form is not costeffective as its volume is far too great. To resolve this problem, gases are liquefied by maintaining them either at very low temperature or under pressure, according to their critical temperature•.

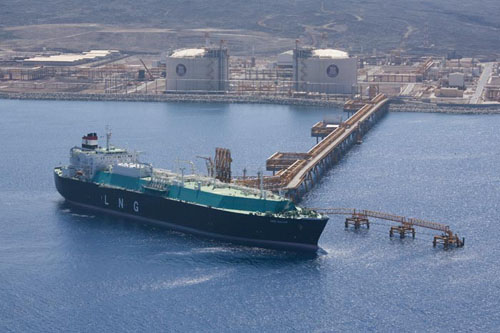

Liquefied natural gas loading terminal
Liquefied natural gas loading terminal

Refrigerated gases mainly comprise: liquefied petroleum gas or LPG (at –45°C), ethylene (at –104°C) and liquefied natural gas or LNG (at –162°C).

Pressurized gases mainly comprise: butane (at 5 bars•), ammonia (at 16 bars) and propane (at 18 bars).

Certain ports are equipped with liquefaction• plants where gases can be transformed into liquids then transported by insulated pipes to storage tanks. Liquefied gases are transported to the loading dock through above-ground pipes. These pipes are connected to the ship's loading/unloading manifold by flexible or articulated arms.

Bulk liquid terminals

Most cargoes of this type are liquid at ambient temperatures (acids•, alcohols). They are stored and loaded in exactly the same way as liquefied gases. However, certain substances, such as palm oil or sulphur, are solid at ambient temperatures and must be heated in order to be handled.

Bulk solid terminals

Bulk solids are stored either outdoors (coal, iron ore), or in warehouses or silos in the case of putrescible• matter (e.g. grain). The goods are transported from the loading dock to the ship's tanks by conveyors. They are unloaded using large clamshell buckets, vertical elevators or suction systems fixed to cranes.

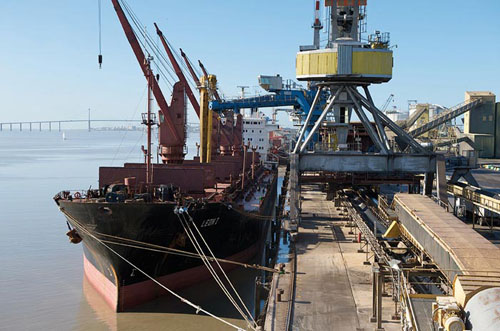

Solid bulk cargo (ore) loading terminal
Solid bulk cargo (ore) loading terminal

Container terminals

Containers• are loaded onto and unloaded from ships using specialized cranes designed to rapidly and accurately move the cargo. A dock equipped with four cranes can handle up to five million tonnes of goods a year.

Container loading terminal
Container loading terminal
